XP-K

Multi-Technology RFID Keypads

The multi-technology Mifare keypads strike an ideal balance between high security and functionality, making them suitable for a wide range of applications. They integrate seamlessly with various access control systems and ensure smooth, encrypted communication.

The multi-technology Mifare keypads can be used with most access controllers available.

They can interact with Wiegand, OSDP, and RS-485 protocols as well as read credentials at 13.56 MHz.

Xsecure

With Xsecure, every card access key is generated through an irreversible diversification process, making it distinct and unique. To prevent spoofing, the card’s data is thus encrypted, sealed, and error-checked.

This process is only visible to the reader and the production card encoding system.

More info

Interoperability

The Xpro multi-tech reader simplifies the handling of technological expansions, updates, and transitions.

The reader can read:

– Xsecure, ISO 14443-A (Mifare), ISO 15693, HID iClass CSN, LEGIC CSN, NFC CSN tags

– Smartphones with Mobile ID

LED

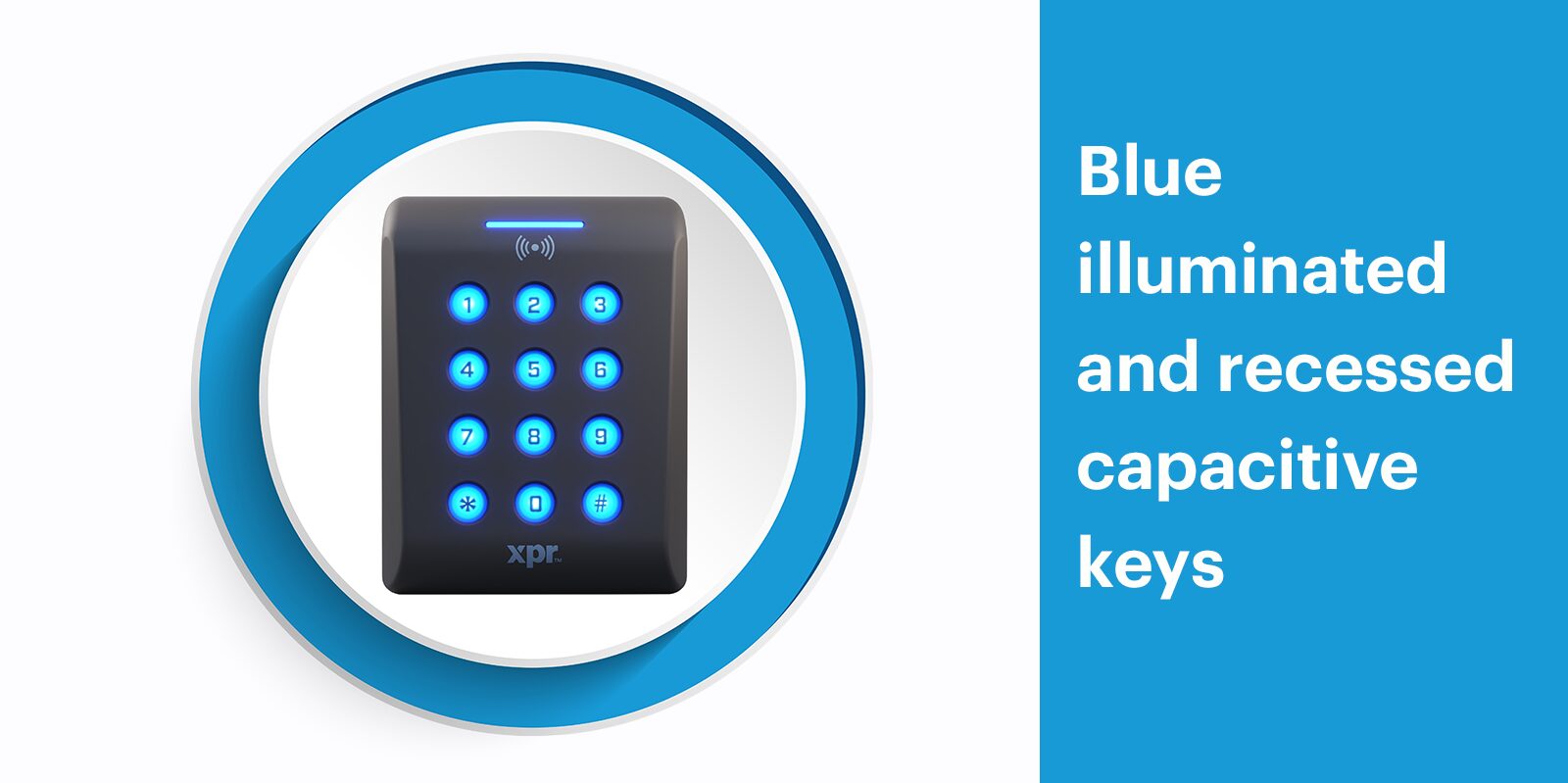

The XP-K has a blue backlit keypad. When a code or card is presented, the top LED of the keypad turns to green when access is allowed or red when it is denied. Each key press is accompanied by a soft beep.

Endless potential

Our product features versatile mounting options that adhere to the standards commonly used in the UK, EMEA, the USA, and most European countries. This ensures compatibility across various regions, providing ease of installation and peace of mind for our customers no matter where they are. It can be easily mounted on an electrical gang box.

IK 10

A device with an IK10 rating is considered to have strong impact protection, meaning it can sustain mechanical impacts without experiencing major damage. Our products feature an IK10 rating, making them suitable for public areas or industrial settings that are frequently vandalised or heavily used.

Resistance

Highly secure outdoor proximity reader IP65

The IP rating evaluates how well electrical and electronic devices protect against moisture and solid intrusion. Our products are rated IP65, meaning they are appropriate for outdoor use since the IP65 rating implies total dust protection and resistance to low-pressure water jets.

Temperature -30ºC to +70ºC

The products are designed to function effectively across a wide temperature range. This capability ensures that they operate reliably in diverse settings, from extremely cold to high-heat environments.

General features

Mounting: Surface
Housing: Polycarbonate copolymer (UL94)
Internal buzzer: With adjustable intensity using software
Reading range: Up to 9 cm, depending on the tag type and size
Communication: Wiegand, RS-485, OSDP
Tamper protection: Yes
Wiring: Terminal block
Operating frequency: 13.56 MHz
Operating voltage: 9 - 15 V DC
Firmware Upgrades / Programming: USB-C

Features per reference

Reference	Functions and credentials				Programming
Reference	13.56 MHz CSN (ISO 14443-A (MIFARE®), ISO 15693, HID® iClass, NFC®)	Custom Encryption DESFire® EV1, EV2 & EV3 and Mifare Classic	Mobile ID	Keypad	Default credential
XP-K-MF-WO	✓	✓	—	✓	Mifare CSN
XP-K-MF-WO-X	✓	✓	—	✓	Xsecure®
XP-K-MFBT-WO	✓	✓	✓	✓	Mifare CSN
XP-K-MFBT-WO-X	✓	✓	✓	✓	Xsecure®
