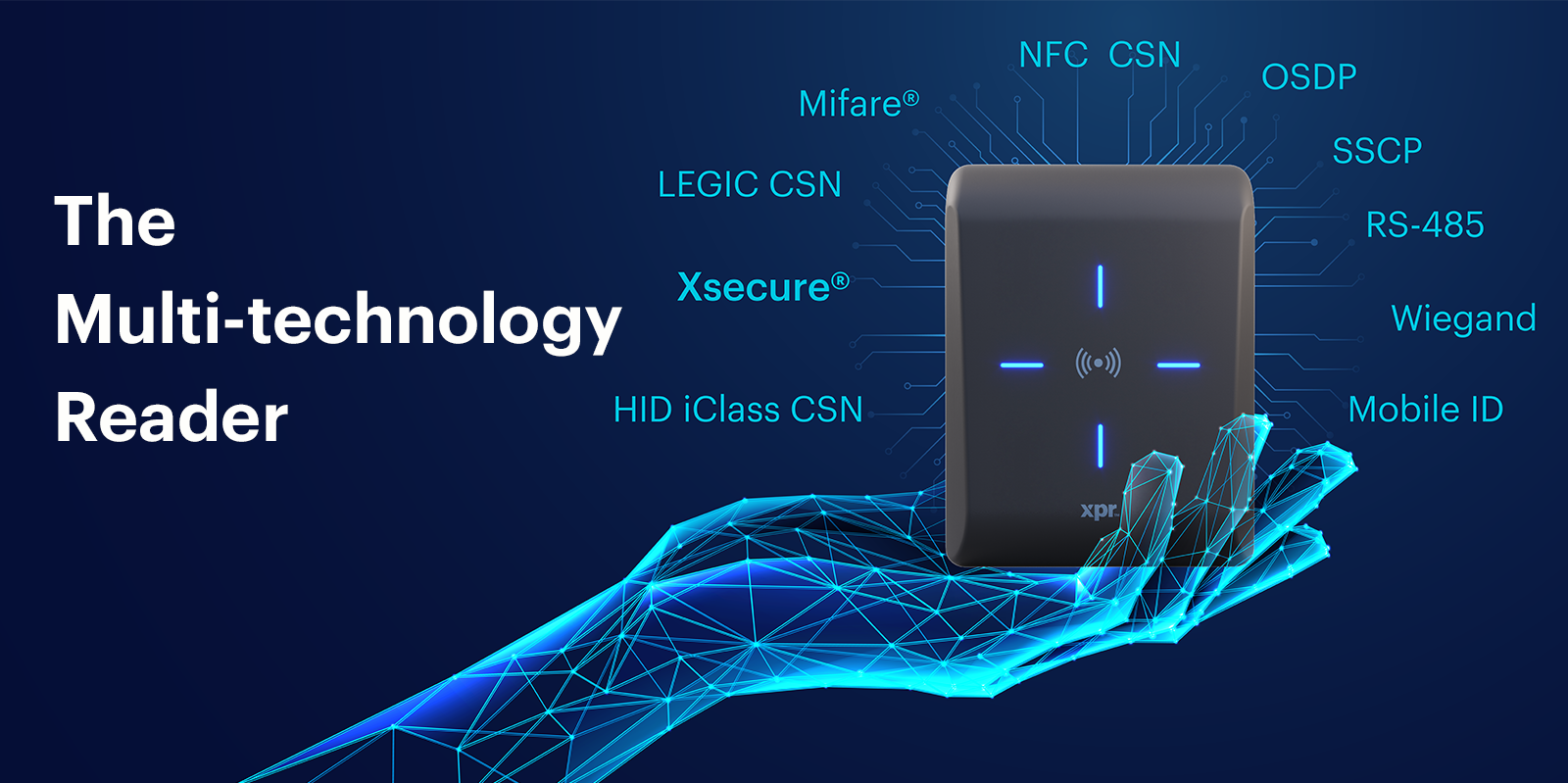

Multi-Technology RFID Readers

These versatile Mifare readers with multi-technology support integrate effortlessly with most access control systems available today. With an emphasis on enhanced durability and resistance, these readers are designed and thoroughly tested to offer extra protection against environmental factors or physical damage.

The multi-technology Mifare readers can be used with most access controllers available.

They can interact with Wiegand, OSDP, and RS-485 protocols as well as read credentials at 13.56 MHz.

Xsecure

With Xsecure, every card access key is generated through an irreversible diversification process, making it distinct and unique. To prevent spoofing, the card’s data is thus encrypted, sealed, and error-checked.

This process is only visible to the reader and the production card encoding system.

More info

Interoperability

The Xpro multi-tech reader simplifies the handling of technological expansions, updates, and transitions.

The reader can read:

– Xsecure, ISO 14443-A (Mifare), ISO 15693, HID iClass CSN, LEGIC CSN, NFC CSN tags

– Smartphones with Mobile ID

Illumination

A front-facing tricolour LED that is intersected shows the reader’s status. Upon presentation of a credential, if access is allowed, the LED changes from blue to green; if not, it changes to red. When the reader is connected (idle mode) and prepared to accept credentials, a noticeable blue LED lights up.

Versatility

Our product features versatile mounting options that adhere to the standards commonly used in the UK, EMEA, the USA, and most European countries. This ensures compatibility across various regions, providing ease of installation and peace of mind for our customers no matter where they are. It can be easily mounted on an electrical gang box.

IK 11

A device with an IK11 rating is considered to have strong impact protection, meaning it can sustain mechanical impacts without experiencing major damage. Our products feature an IK11 rating, making them suitable for public areas or industrial settings that are frequently vandalised or heavily used.

Resistance

Highly secure outdoor proximity reader IP65

The IP rating evaluates how well electrical and electronic devices protect against moisture and solid intrusion. Our products are rated IP65, meaning they are appropriate for outdoor use since the IP65 rating implies total dust protection and resistance to low-pressure water jets.

Temperature -30ºC to +70ºC

The products are designed to function effectively across a wide temperature range. This capability ensures that they operate reliably in diverse settings, from extremely cold to high-heat environments.

General features

Mounting: Surface
Housing: Polycarbonate copolymer (UL94)
Internal buzzer: With adjustable intensity using software
Reading range: Up to 9 cm, depending on the tag type and size
Communication: Wiegand, RS-485, OSDP
Tamper protection: Yes
Wiring: Terminal block
Operating frequency: 13.56 MHz
Operating voltage: 9 - 15 V DC
Firmware Upgrades / Programming: USB-C

Features per reference

Reference	Functions and credentials			Programming
Reference	13.56 MHz CSN (ISO 14443-A (MIFARE®), ISO 15693, HID® iClass, NFC®)	Custom Encryption DESFire® EV1, EV2 & EV3 and Mifare Classic	Mobile ID	Default credential
XP-MF-WO	✓	✓	—	Mifare CSN
XP-MF-WO-X	✓	✓	—	Xsecure®
XP-MFBT-WO	✓	✓	✓	Mifare CSN
XP-MFBT-WO-X	✓	✓	✓	Xsecure®
